  9. ISO pneumatic solenoid valve - Parker DX series ISOMAX 15407-1

ISO PNEUMATIC SOLENOID VALVE - PARKER SERIES
dx isomax 15407-1

Parker Hannifin

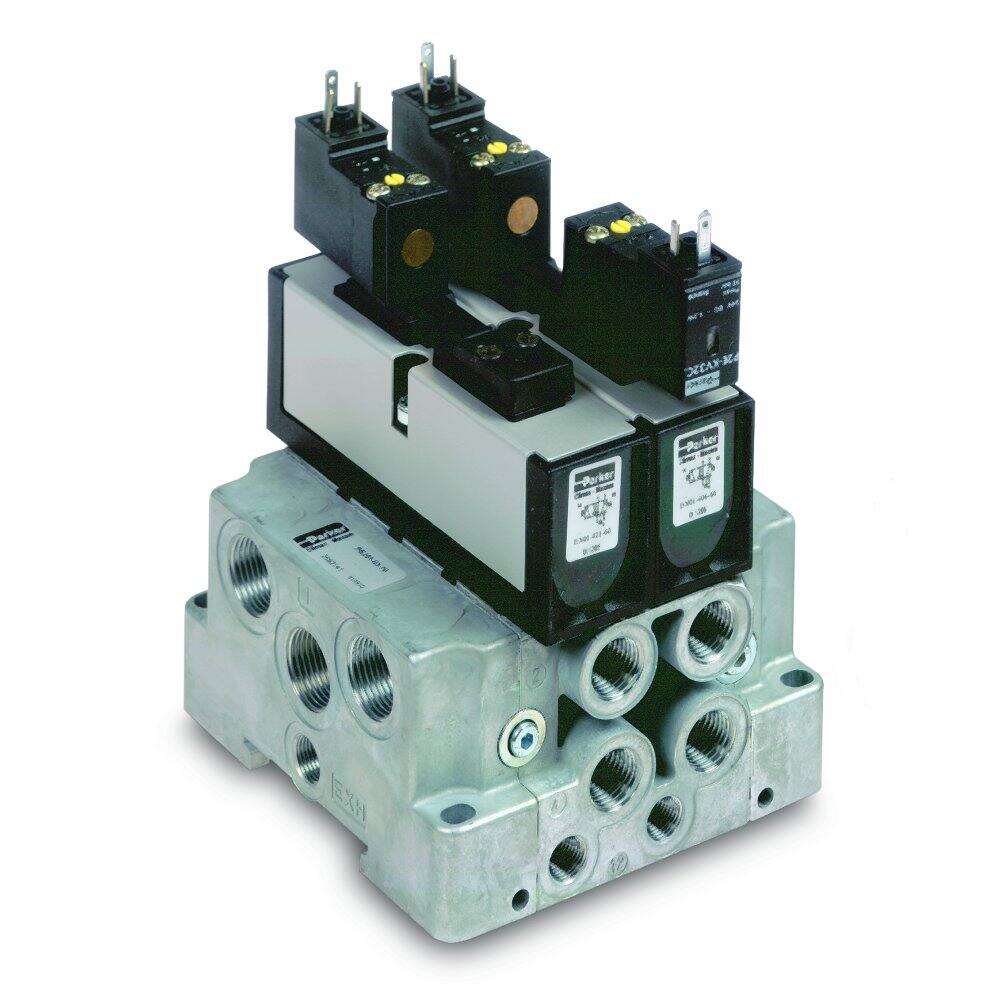

ISO PNEUMATIC SOLENOID VALVE - DX SERIES ISOMAX 15407-1

- Function(s) : 5/2, 5/3
- Actuation: Pneumatically actuated solenoid valve
- Mounting type: Combinable subbase, single subbase
- Mounting: Standard ISO 15407-1
- Max. number of joinable subbase slots: 32
- Orifice sizes: 1/8″, 1/4″
- Orifice type: BSPP, NPT
- Min. flow (Cv): 0.35
- Max. flow (Cv): 0.75
- Flow (Qn) l/min : 720
- Flow rate (Q Max) in l/min: 1050
- Voltage range: 24 VDC to 120 VAC
- Solenoid valve connection type(s): 15 mm, M12 3-pin
- Certifications/Homologations: ISO 15407-1, VDMA 24563, IP65
- Pressure range (PSIG): vacuum to 145
- Pressure range (bar): from -0.9 to 10
- Minimum solenoid operating pressure (PSIG): 15
- Temperature range (C): -10 to 60
- Temperature range (F) : 14 to 140
- Fluid: Inert gases
- Lubrication: Acetal/ceramic self-lubrication
- Power consumption: 1.2 W, 1.6 VA
- Body material: Fiberglass-reinforced polyamide
- Sealing material: Ceramic base/nitrile seals

Documentation française

Documentation française

English documentation

The Parker DX series ISOMAX 15407 pneumatic solenoid valve is a unitary subbase-mounted valve with internal/external pneumatic actuation. ISOMAX size 01 and 02 valves are not panel-mounted. They can be mounted on a stand-alone single-valve subbase or on a multi-valve manifold subbase. Available ports: 1/8 or 1/4 NPT/BSPP. The following valve functions are available:

- 5/2, single solenoid valve, spring or air return
- 5/2, double solenoid valve
- 5/3 position, double solenoid valve, all ports blocked or central exhaust
